What Resin is Used for Uranium Extraction?

The Growing Importance of Uranium in the Energy Sector

Against the backdrop of an aggressive global push for clean energy, nuclear energy is gaining prominence as a reliable, low-carbon energy source. High projections by the International Atomic Energy Agency (IAEA) show that nuclear energy is expected to account for around 14% of global electricity supply by 2050. This growth trend greatly increases the importance of uranium in the energy sector, as it is a key fuel for nuclear reactors.

The Critical Importance of Efficient Uranium Extraction

Efficient uranium extraction technology is critical to maintaining the sustainability of the nuclear energy supply chain. The efficiency of uranium extraction from ore is directly related to the cost and stability of nuclear power generation. Ion exchange resins, a key technology in the uranium extraction process, play a pivotal role in this field by significantly improving the efficiency and quality of uranium extraction.

Uranium Recovery (Extraction) Methods

Conventional Mining

Open Pit Mining

In open pit mining, the topsoil (overburden) covering the top of the uranium ore is first removed to expose the ore body. Subsequently, a large pit is excavated to access the deposit. To prevent the walls of the pit from collapsing, the rock is mined in stages, i.e. in steps. At each step, holes are drilled into the rock and filled with explosives. The explosives are detonated to break up the rock, and the broken rock is then transported to the surface in large trucks. Currently, the world's largest open-pit uranium mine is the Rössing Uranium Mine in Namibia.

Underground Mining

To mine a deeply buried uranium ore body, a shaft is dug to the depth of the deposit. Next, tunnels are cut around the ore body. Flat tunnels (horizontal tunnels) not only provide direct access to the ore deposit, but also serve as ventilation channels. In most underground mines, the ore body is blasted and lifted to the surface for grinding. To be economically viable, these deposits must have relatively high grades. For example, the McArthur River Mine, jointly owned by Cameco of Canada and AREVA of France, is the largest high-grade uranium deposit in the world.

In-situ recovery / in-situ leaching / solution mining

Under suitable geological conditions, uranium ore can also be mined by the In Situ Recovery (ISR) method. This method is only suitable for sandstone deposits located below the water table in confined aquifers. The in-situ recovery method involves leaving the uranium ore body underground, dissolving the uranium in the solution by injecting sulfuric acid or a weakly alkaline solution, and then pumping the solution out through a well. The uranium-bearing solution is then pumped to the surface, while the rock remains undisturbed. About a quarter of the world's uranium mines utilize the in situ recovery method, and almost all of the uranium mines in Kazakhstan use this method.

Uranium Extraction Resin

Types of Resins Used

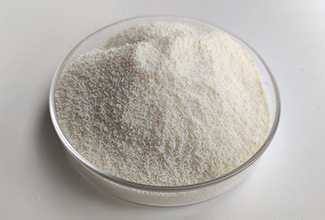

Strong base anion exchange resins are the standard choice for uranium extraction. Its ability to bind to uranium ions during the extraction of uranium from the leach solution allows for efficient separation and purification. The unique chemical structure of this resin gives it a high affinity for uranium ions, enabling it to accurately capture uranium ions in complex solution environments.

Working Principle

1. Leaching

Uranium ore is first crushed and milled, then leached with chemicals (e.g., sulfuric acid) to dissolve the uranium in solution. This step is to convert the uranium from the solid form of the ore to the ionic form in a liquid solution in preparation for subsequent extraction operations.

2. Ion exchange

The leach solution containing uranium is then passed through a column filled with a strong base anion exchange resin. In this process, the resin acts as an “adsorbent” and begins to interact with the uranium ions in solution.

3. Uranium adsorption

Uranium ions (in the form of anionic complexes) are selectively adsorbed onto the resin beads. Due to the chemical reaction between the special functional groups of the resin and the uranium ions, the uranium ions are able to attach firmly to the surface of the resin, thus realizing the separation of uranium from solution.

4. Elution

Next, the uranium is eluted (or removed) from the resin using a different solution (e.g., dilute sulfuric acid). This elution breaks the chemical bonds between the uranium ions and the resin, allowing the uranium ions to re-enter the solution, thus separating the uranium from the resin.

5. Purification and precipitation

The uranium-containing solution obtained is further purified to remove any impurities that may be present in it. Finally, the uranium is precipitated as a concentrate, usually in the form of yellowcake, by specific chemical reactions. Yellowcake is an important uranium enrichment product that can be used in subsequent nuclear fuel processing.

Resin Types

Macroporous and Gel Type

Both macroporous and gel type resins are used in uranium extraction. Macroporous resins perform better in terms of physical and chemical stability and have higher resistance to degradation. In the actual uranium extraction process, due to the complex chemical nature of the solution and the possibility of mechanical stress, macroporous resins are better able to adapt to these environments and maintain the stability of their structure and properties, thus ensuring long-term and efficient uranium extraction results.

Advantages of Using Resins

High recovery rates

Resins enable high uranium recovery from leach solutions. By accurately controlling various parameters in the ion exchange process, such as solution pH, temperature, flow rate, etc., the resin's adsorption of uranium ions can be optimized so that more uranium ions can be extracted, thus increasing the overall uranium recovery rate.

Purification Function

The resin can effectively remove impurities from the uranium solution. In the process of adsorption of uranium ions, the resin has a high selectivity for uranium ions and a weak adsorption capacity for other impurity ions. As a result, impurities in the solution are removed during the process of uranium adsorption and elution, greatly improving the purity of the final uranium product.

Versatility

The resin can be used in a variety of uranium mining processes, including fixed bed and fluidized bed operations. In fixed bed operations, the resin is filled in a fixed column through which the leaching solution passes for ion exchange, while in fluidized bed operations, the resin is in suspension in a flowing solution and is in full contact with the solution for ion exchange. This wide range of applicability allows the resin to be adapted to different uranium mining conditions and process requirements.

Cost Effectiveness

Resin-based uranium extraction methods are generally cost-effective compared to other extraction techniques. Resins have a long service life and do not require large quantities of expensive chemicals or complex equipment during the extraction process. In addition, the high recovery and purification results reduce the cost of subsequent processing, thus lowering the overall cost of uranium extraction.

Conclusion

Summarizing the importance of uranium extraction resins in the nuclear energy supply chain

Uranium extraction resins play a key role in the nuclear energy supply chain. From the mining of uranium ore to the preparation of the final uranium product, resin technology runs the gamut, providing efficient and economical access to uranium resources. It not only improves uranium recovery and purity, but also makes the fuel supply for nuclear power generation more stable and sustainable.

Looking to the Future of Uranium Extraction Resins

Considering the continued growth of nuclear energy and the potential for further innovation in resin technology, uranium extraction resins are expected to make even greater breakthroughs in the future. As materials science continues to advance, new resins are likely to have higher adsorption capacity, greater selectivity and better stability. This will further enhance the efficiency of uranium extraction, reduce costs, and inject new vitality into the development of the global nuclear energy industry, helping to realize a cleaner and more sustainable energy future.
